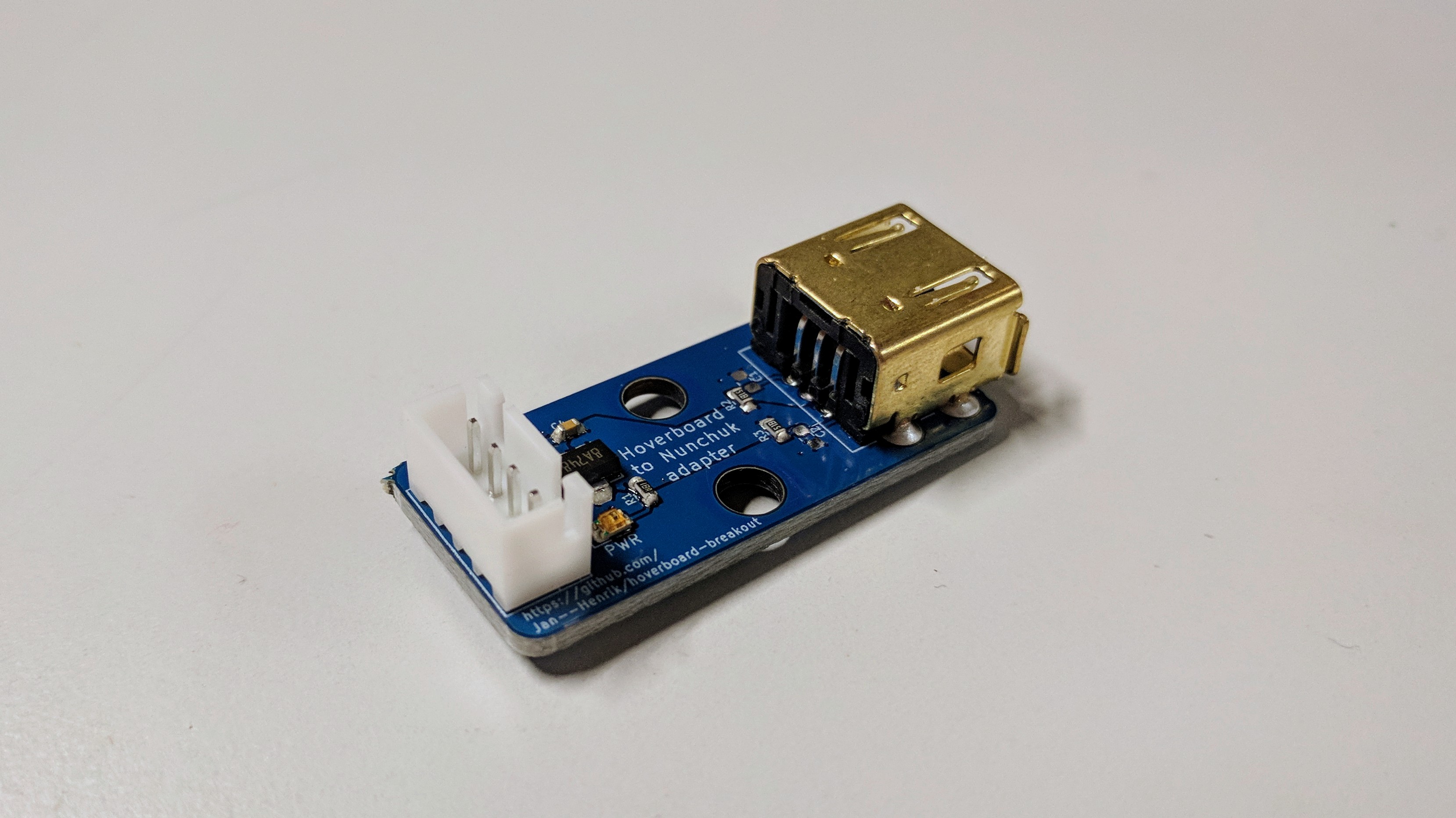

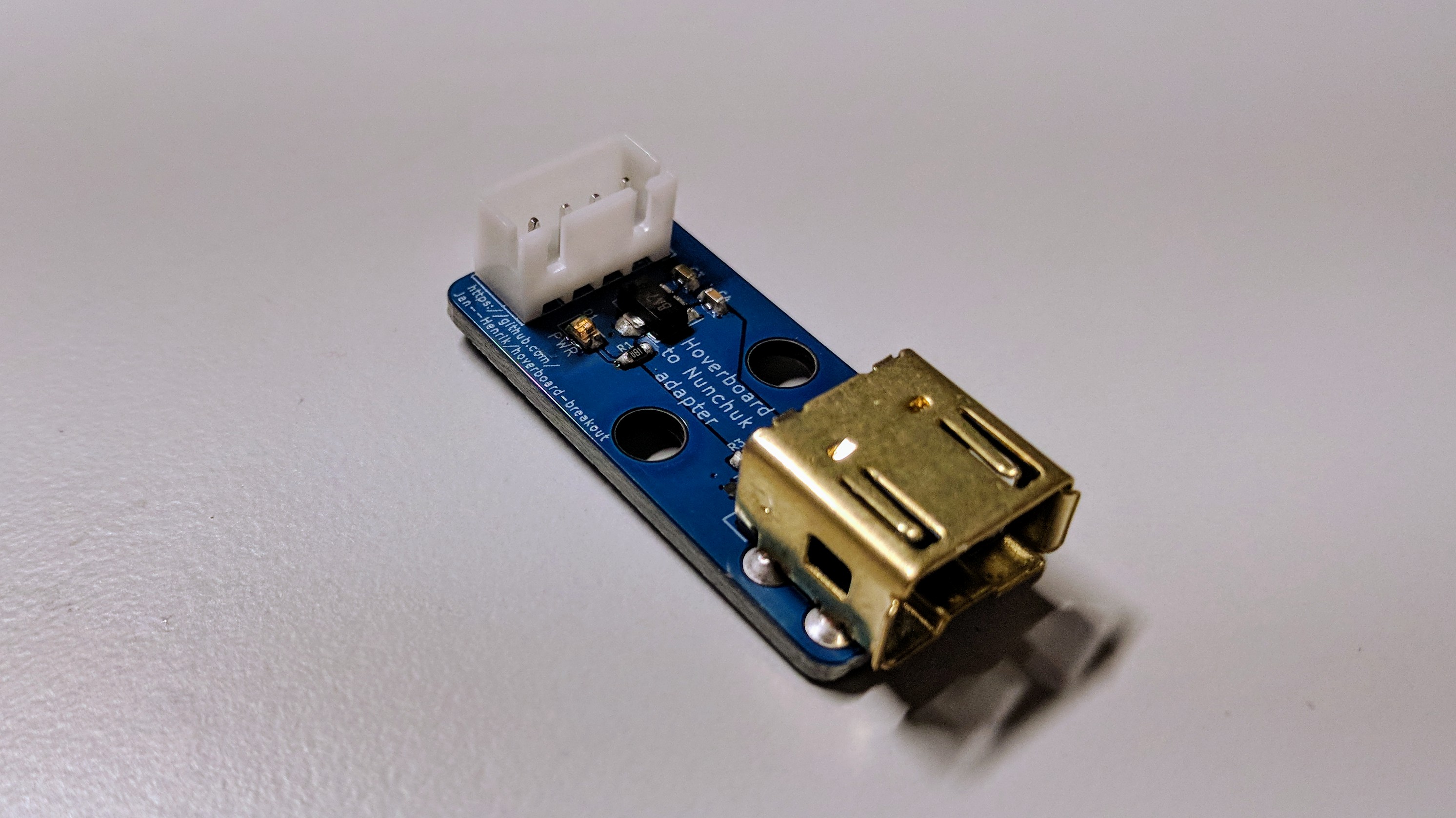

Nunchuk to hoverboard connector board

Buy Parts

Adjust quantity:
%

ReferencesQtyDescriptionManufacturerMPNManufacturerMPNManufacturerMPNDigikeyMouserRSNewarkFarnell
U1178L33ACUTR SOT-89497-1200-1-ND511L78L33ACU686942689K13612253467
D11LED blue 0805
R11220Ohm 0603YageoRC0603FR-07220RLPanasonicERJ-3EKF2200VVishayCRCW0603220RFKEA311-220HRDKR-ND667ERJ3EKF2200V820680264R53289238409
R2,R323.3kOhm 0603YageoRC0402FR-073K3LPanasonicERJ-2RKF3301XVishayCRCW04023K30FKEDP3.30KLCT-ND71CRCW04023.3KE3678926364R52782302691
C3,C42100nF 0603YageoCC0603KRX7R9BB104MurataGRM188R71H104KA93D490-1519-6-ND603CC603KRX7R9BB104723567668R47888820023
J11B4B-XH-A(LF)(SN)https://lcsc.com/product-detail/_JST-Sales-America_B4B-XH-A-LF-SN_JST-Sales-America-B4B-XH-A-LF-SN_C144395.html455-2249-ND8201551P73M94361516278
NUNCHUK1NUNCHUK
C1,C22DNPhttps://de.aliexpress.com/store/product/2PCS-Replacement-Jack-Socket-Dock-Connector-Port-for-Nintendo-Wii-Right-Left-Socket-Link-Controller/3084037_32881749867.html

hoverboard-nunchuk-breakout

Hoverboard to nunchuk-connector breakout.
